Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

ブランド名: PFM
モデル番号: PFM-CB356
Moq: 1メートル
価格: 交渉可能
支払条件: L/C,T/T,ウェスタンユニオン,Paypal,取引保証
供給能力: 月300メートル
詳細情報
起源の場所:
中国、ヘベイ
証明:
SGS
材料:
ステンレス鋼、炭素鋼
平らなワイヤのピッチ:
25.4 mm
ロッドピッチ:
25.4 mm
ロッドの直径:
5.0 mm
平らなワイヤー サイズ:
1.2mm*14.1mm
サンプル:
利用可能
パッケージの詳細:
プラスチックバッグ内側とプラウダーケース外側 またはあなたの必要に応じて.
ハイライト:

stainless steel 316 conveyor belt

,

honeycomb mesh conveyor belt

,

heavy duty wire mesh belt

製品説明

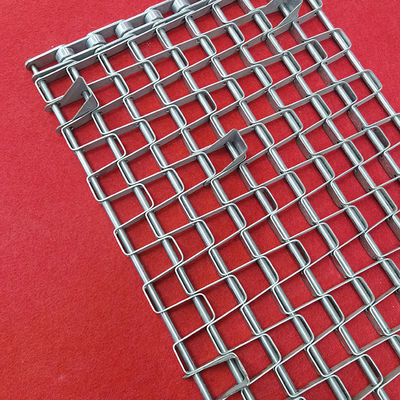

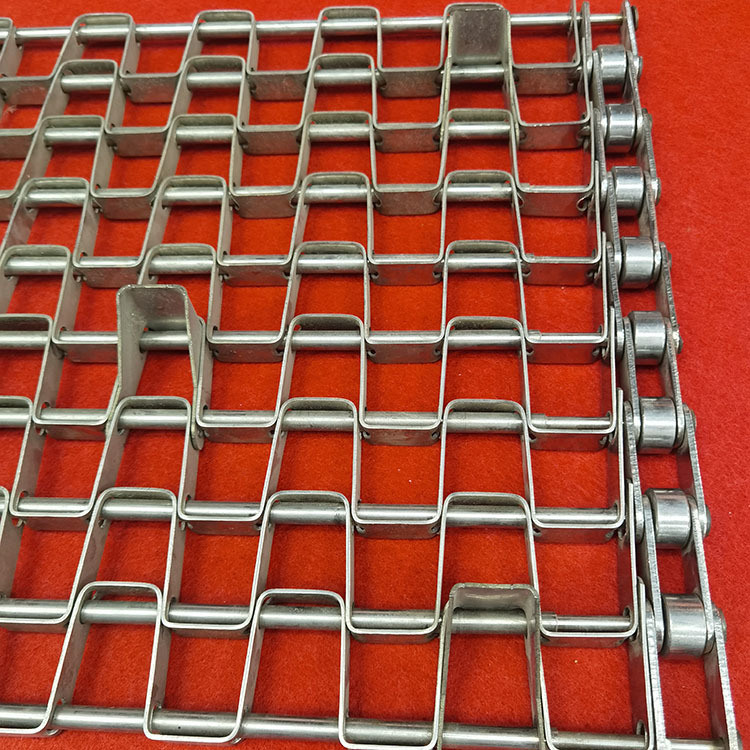

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle
Description
Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.
Specification
Material stainless steel, carbon steel
Width customized
Length customized
Flat wire pitch 12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch 13.7, 19.05, 25.4, 27 mm
Rod diameter 3.0, 4.0, 5.0 mm
Flat wire size 1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm
Features
  • Positive sprocket drive ensures stable running
  • Larger open area provides high air permeability
  • Easy to wash and maintain
  • Smooth surface carries unstable products securely
  • Suitable for curved conveyor applications (CFW)
Applications
  1. Conveyor machines
  2. Frying facilities
  3. Annealing furnaces
  4. Refrigeration facilities
  5. Cleaning machines
  6. Drying ovens
  7. Food transport
  8. Baking
  9. Cooling and freezing
  10. Steaming and drying
Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle 0 Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle 1
