Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling

ブランド名: Comesh
モデル番号: CAR-019
Moq: 10メートル
価格: 交渉可能
支払条件: T/T、ウェスタンユニオン、
供給能力: 月に200メートル
詳細情報
起源の場所:
中国
証明:
FDA
名前:
シーフード冷却用金属チェーン駆動馬蹄ステンレス鋼ハニカムメッシュベルト
材料:
ステンレス鋼304316310,炭素鋼
厚さ:
0.8mm-5mmなど
特徴:
耐磨性,耐熱性,耐酸性
ベルトタイプ:
直接駆動するホイリング
チェーンピッチ:
19.05 / 25.4 / 31.75 / 38.1 / 50.8 / 76.2 / 101.6mm
加工サービス:
曲げ、溶接、デコイ、切断、打ち抜き
アプリケーション:
清掃プロセス,調理,冷却,製品輸送
技術:
溶接し 折りたたむ
ロッドの直径:
5 / 6 / 8 / 10 / 12mm
パッキング:
木製ケース
パッケージの詳細:
プラスチック袋内側 木製ケース外側
ハイライト:

stainless steel honeycomb mesh belt

,

metal chain driven conveyor belt

,

seafood cooling wire mesh belt

製品説明

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling



Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling description:

The Great Wall net belt is also called horseshoe chain, plate type net belt, metal sheet type net belt, towing belt is composed of flat metal sheet and round metal wire, the net belt is light in weight, the mesh hole is large, the mesh surface is flat, the running is stable and will not deviate. It can be used for washing, drying, cooling and heat treatment. It is widely used in food bread thread, screw tower conveying, spraying, cleaning machine and heavy-duty conveying machine. Using the Great Wall belt can form a conveying process of material from the initial feeding point to the final unloading point on a certain conveying line. The Great Wall network belt can be used for the transport of broken materials, but also for the conveyance of finished items. In addition to pure material transportation, it can also meet the requirements of the technological process in the production process of various industrial enterprises, and form a rhythmic flow line of transportation. Therefore, the Great Wall network belt is widely used in modern industrial enterprises, is the industry automation equipment and modern automation assembly line indispensable important accessories.




Name Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling
Material Stainless steel 304,316,310,314S,carbon steel
Plate thickness 0.5mm-3mm
Purpose Cooking, baking, cooling, washing, frying, drying, sterilizing, pasteurizing, transporting, garbage disposal, blanching, deep frying and so on.
Driven type Sprockets driven directly



Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling​ advantage:



Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.



Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling application:



1. Quick freezing in product handling systems, flat conveying of baking machinery, spiral conveying, annealing, baking, bottleconveying, etc. of glass machinery.

2. Cleaning, drying, cooling, steaming, etc. in food production.
3. Stainless steel metal honeycomb mesh conveyor belts are widely used in glass industry, food processing industry, and chemical industry.
4. Mesh conveyor belts are widely used in cement, metallurgy, casting, chemical industry and other fields to transport materials.
5. Mesh conveyorbelts can be used as high temperature and burn resistant conveyor belts, and can also serve as mats and drag pads.
6. Cooking,baking, cooling, washing, frying, drying, sterilizing, pasteurizing, transporting, garbage disposal, blanching, deep frying

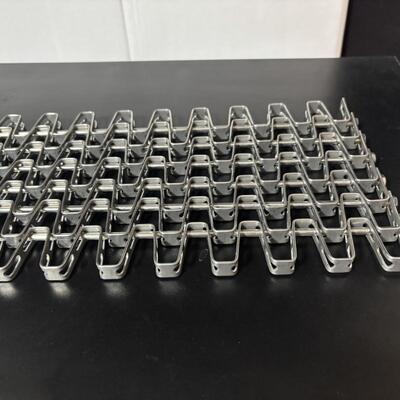

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling 0

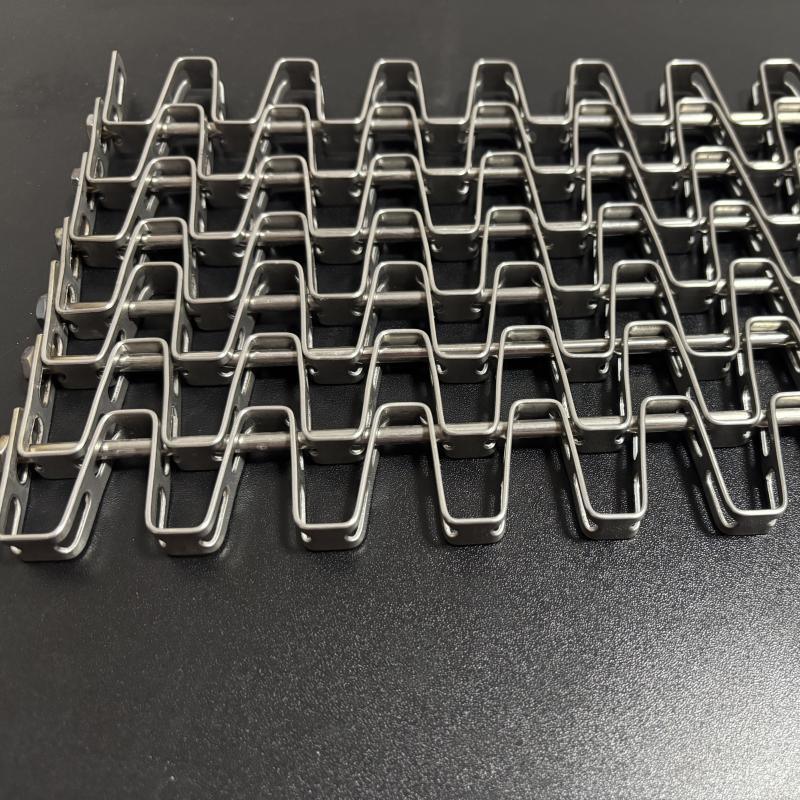

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling 1

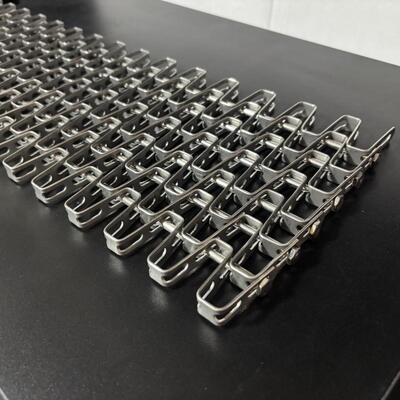

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling 2
