127mm Width 152 Mesh Stainless Steel 304 or 201 Reverse Dutch Woven Wire Mesh for Plastic Extruder Filter Screen

127mm Width 152 Mesh Stainless Steel 304 or 201 Reverse Dutch Woven Wire Mesh for Plastic Extruder Filter Screen

ブランド名: COMESH
モデル番号: CM-SM010
Moq: 2 m
価格: USD 0.5 to 10 per meter
供給能力: 月額50000M
詳細情報
起源の場所:
中国
証明:
FDA
材料:
ステンレス鋼304または201
織りの種類:
constrastのオランダの織り方
メッシュカウント:
40 - 350
線径:
0.27/0.4mm
幅範囲:
40mm - 230mm
長さ:
10メートル
パッケージの詳細:
次にロールごとの外で防水ペーパー、および木の場合。
製品説明
127mm Width 152 Mesh Stainless Steel Reverse Dutch Woven Wire Mesh For Plastic Extruder
Product Overview
Stainless steel reverse dutch wire mesh, also known as contrast type net, contrast seat mesh belt or Dutch cloth, is a high-performance filtration mesh woven by the reverse dutch technique with premium stainless steel wires. Its defining feature is the thicker weft wires and finer warp wires, creating a significant "contrast" in wire diameter and density between warp and weft, which delivers superior filtration accuracy and structural strength compared to standard square mesh.
Technical Specifications
Mesh/Inch Wire Dia. (mm) Width (mm) Length (mm)
72/15 0.45/0.55 97-400 10/20
132/17 0.32/0.45 97-400 10/20
152/24 0.27/0.4 97-400 10/20
170/17 0.27/0.45 97-400 10/20
200/40 0.17/0.27 97-400 10/20
260/40 0.15/0.25 97-400 10/20
Applications
  • Rubber industry
  • Plastic industry
  • Oil industry
Packaging
Waterproof paper bag per roll, and then wooden case outside. Customized packaging available upon request.
Delivery Options
Available shipping methods include sea, air, or express carriers (DHL, TNT, FEDEX, SF, UPS, etc.). DDP service is also available.
Product Images

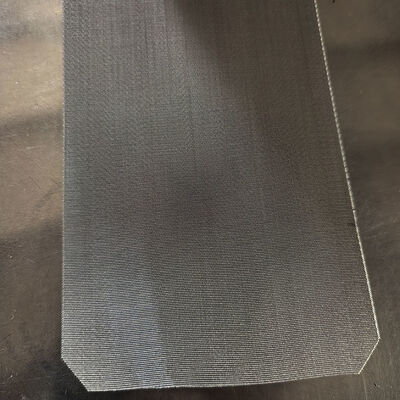

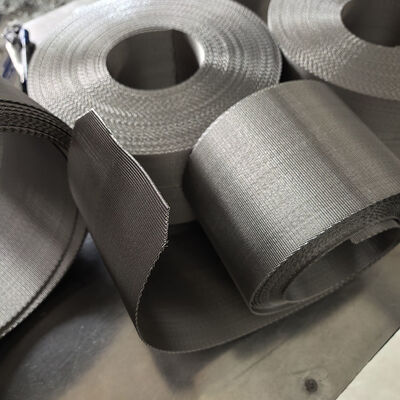

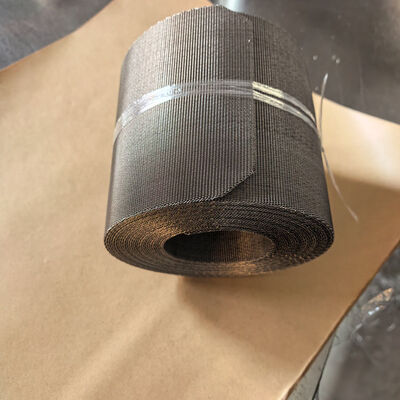

127mm Width 152 Mesh Stainless Steel 304 or 201 Reverse Dutch Woven Wire Mesh for Plastic Extruder Filter Screen 0 127mm Width 152 Mesh Stainless Steel 304 or 201 Reverse Dutch Woven Wire Mesh for Plastic Extruder Filter Screen 1
